Making a Sharpening Block for a Scrub Plane Iron

For a long time I've wanted to find a better way to sharpen my scrub plane blade.  I've been doing it by hand on the diamond stones, but I tend to change the radius to a MUCH tighter curve than intended.  My scrub plane is a Stanley #5.  I had filed an 8" radius on the business end of the blade and moved the frog back to open the mouth.  My thought was to create a block with a concave surface that I could use with sandpaper to sharpen the blade.

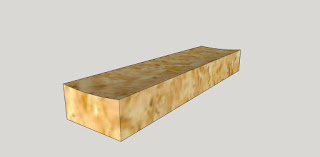

Rendition of the sharpening block with concave top surface
There is an error in my thinking here, but I'll get to that later.  I used my homemade large compass to draw an 8" radius on some cardboard from a cereal box and cut out the shape.
Homemade compass
Then I transferred the convex shape to the end of a squared-up block.  I'm making a convex block first so I can use it to more accurately form the concave block that I'll use for sharpening.  It's much easier to plane a block to a convex shape than to plane a concave shape.
Radius pencilled on block (view from above the block being held vertically in vise)
I planed carefully with the #4 and checked the progress with the cardboard template.

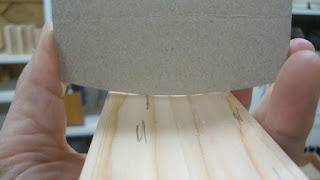

Not close enough
When it was close I used a thin scraper, bending it to task to smooth the shape.

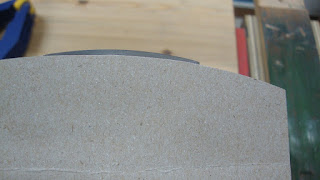

A much better fit
Satisfied, I squared up a piece of wood for the concave block and pencilled in the radius I wanted to plane to.  I used my little wooden compass plane (correct name?) and checked the progress as I went.
Compass plane and scraper
Checking progress - pencil lines show where to remove more
When it was close enough, I bent the scraper to task and smoothed the surface.  But I was going to get the final shape using the convex block I made earlier.  Wrapping it in coarse sandpaper, I went at the concave block until I was satisfied with the shape.
Convex block wrapped in sandpaper
To sharpen the cambered iron, I put the concave block in the vise with some 180 grit sandpaper on it.
Ready to be used
The sandpaper wears out quickly, but it got the job done eventually.  I used the diamond plates to remove the burr and flatten the back, then put some leather with honing compound on the concave block to strop the blade.
Stropping the blade
This worked out quite well.  I did a test cut on some rough sawn stock and it seemed like it was much easier to scrub it than previously.  That was the success.  But here is the failure:

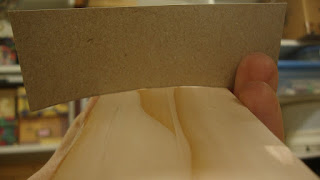

The blade had a tighter radius than the template
I didn't think hard enough about the radius that needed to be transferred to the sharpening blocks.  Look at this schematic I drew up in Sketchup.  Perfect match between the blade and the block of wood.
Blade with 8" radius standing vertically on block with matching curve in top surface
Close-up of above picture
Watch what happens when I angle the blade down so that it is 30° from horizontal.  In this picture, I've moved the blade to the end of the block.
See the gap?
And here is a view from the near end of the block looking straight down to the blade edge.
This view of the edge of the angled blade is the actual radius I should have put on the block
So the question is this: how do I calculate what radius to put on the block?  I have a degree in mathematics and I used to teach geometry (albeit 33 years ago), so I should be able to figure this out!

After trying different things in Sketchup, if I use a 16" radius on the end of the block, that would give just about the right curvature to match an 8" radius on the blade when it is angled at 30°.  Hate to use a brute force method here.  Sure would love a nice geometric solution.
